Connect Field Devices to SCADA, HMI, and Industrial Applications
Modern factories need more than individual sensors and machines. To build an effective automation system, field signals must be collected reliably and transferred to monitoring and control applications.
The combination of AT-DIO8 Smart I/O and ATDriver Server 5.0.0.1 provides a practical hardware-software architecture for connecting field devices with higher-level industrial systems.
The Challenge of Industrial Data Acquisition
Sensors, switches, and machines can generate large numbers of digital signals. Connecting every signal directly to a central system can make wiring, expansion, and maintenance more complicated.
A distributed I/O architecture provides a more flexible approach by placing I/O hardware closer to field equipment and using industrial communication to transfer the collected data.
AT-DIO8 Smart I/O for Field-Level Signal Collection
AT-DIO8 Smart I/O is designed to collect digital signals from industrial equipment while also providing relay outputs for control and automation applications.
Key features include:
- 8 Digital Inputs
- 8 Relay Outputs
- RS485 Modbus RTU communication
- 9–30VDC power supply
- Connection with sensors, switches, and machines
The AT-DIO8 can be installed as a field-level I/O module, helping organize signals from distributed equipment before transferring them to the central software system.
ATDriver Server 5.0.0.1 for Industrial Communication
ATDriver Server 5.0.0.1 provides the communication and data acquisition layer between industrial devices and software applications.
It can help make field data available to systems such as:
- SCADA
- HMI
- Databases
- Industrial applications
- Cloud platforms
This creates a bridge between physical equipment and software-based monitoring systems.
How the Solution Works

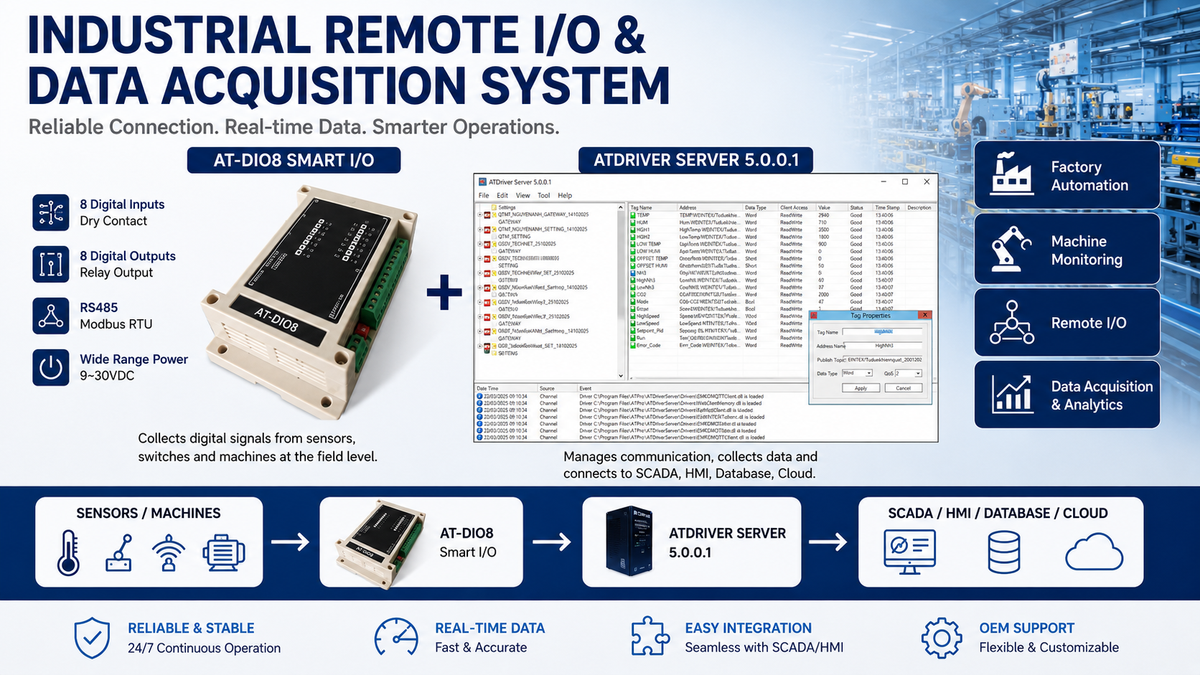

A typical architecture can be structured as:
Sensors / Machines
↓
AT-DIO8 Smart I/O
↓
RS485 Modbus RTU
↓
ATDriver Server 5.0.0.1
↓
SCADA / HMI / Database / Cloud
Each component has a clear role.
AT-DIO8 handles field-level digital signal acquisition and relay output.
ATDriver Server handles communication and data acquisition between devices and software.
SCADA/HMI can then visualize and manage the collected information.
Industrial Applications
Factory Automation
Collect digital signals from production machines and integrate them into centralized automation systems.
Machine Monitoring
Monitor operating states, machine conditions, and digital equipment signals through a centralized interface.
Remote I/O
Deploy I/O closer to distributed machines and field devices while communicating with the central system through RS485.
Industrial Data Acquisition
Collect field signals and transfer the information to databases or industrial applications for further processing.
OEM Machine Integration
OEM machine builders can integrate the I/O and communication architecture into customized equipment and automation solutions.
Hardware + Software Working as One Solution
The main advantage of this combination is the clear separation between the field hardware layer and the software communication layer.
Instead of connecting every field signal directly to a central application, the system creates a structured data path:
Field Device → AT-DIO8 → Communication → ATDriver Server → Application
This architecture can simplify system design and provide a practical foundation for projects that need to expand their I/O and data acquisition capabilities.
Build a Flexible Industrial Automation System
For system integrators, factories, and OEM machine builders, AT-DIO8 Smart I/O + ATDriver Server 5.0.0.1 can serve as a foundation for connecting field devices with modern industrial software.
From factory automation and machine monitoring to remote I/O and industrial data acquisition, the solution provides a straightforward path for moving field-level signals into centralized monitoring and control systems.
