Solar Farm Power Monitoring System (PMS)

Advanced SCADA-Based Solution for Solar Energy Optimization

In today’s rapidly growing renewable energy market, solar farms require more than just basic monitoring — they demand intelligent, centralized, and scalable power management systems.

The Solar Farm Power Monitoring System (PMS) powered by ATSCADA delivers a complete solution for real-time monitoring, energy analytics, and financial optimization across solar power plants.

Why Solar Farms Need a Modern PMS

As solar energy adoption increases, operators face several critical challenges:

• Managing multiple inverter brands and models

• Monitoring systems across distributed locations

• Tracking energy production, consumption, and grid export

• Calculating revenue and electricity costs accurately

• Evaluate power quality and system performance, including thermal conditions using busbar temperature monitoring systems

Traditional monitoring tools often fall short — they only display basic real-time data without deeper analytics or centralized control.

What is Solar Farm PMS?

A Solar Farm Power Monitoring System (PMS) is a SCADA-based platform that:

• Collects real-time data from inverters and power meters

• Centralizes monitoring across multiple sites

• Provides advanced analytics and reporting

• Enables financial tracking of energy generation and usage

Unlike basic EMS solutions, PMS is designed specifically for power-focused operations, making it ideal for solar farms.

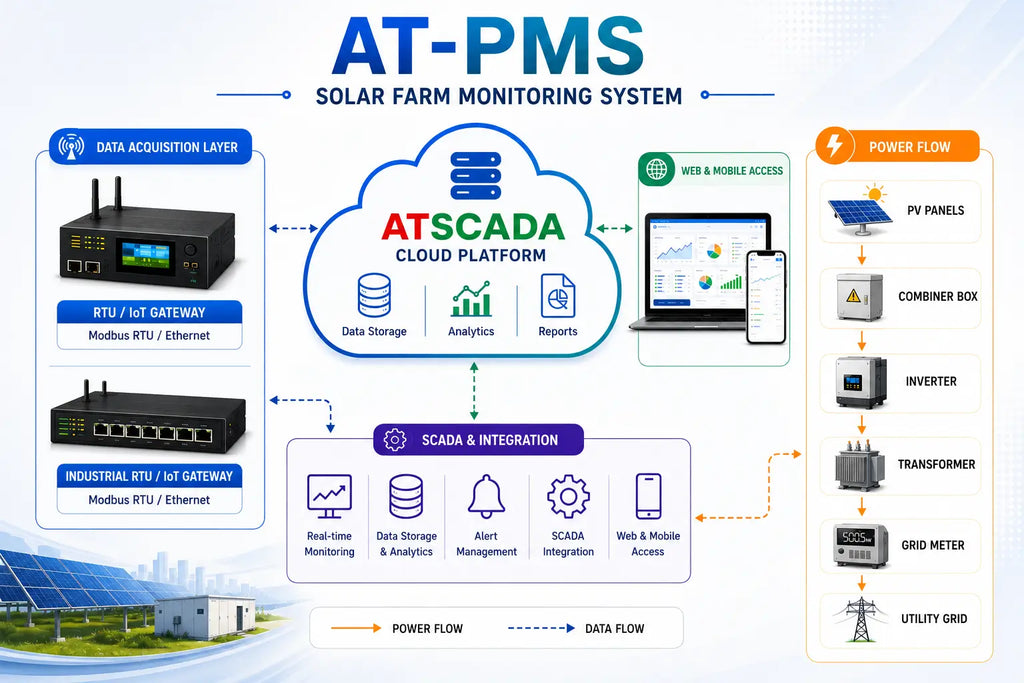

System Integration Diagram:

Features of Solar Farm PMS

1. Centralized Monitoring Across Multiple Locations

• Monitor entire solar farm systems in one platform

• Support for multiple inverter brands

• Group devices by region, plant, or function

2. Real-Time Data Acquisition

Track key parameters:

• Voltage (U)

• Current (I)

• Power (P)

• Energy (kWh)

Instant visualization on:

• Desktop SCADA

• Web-based dashboards

• Cloud platforms

3. Advanced Energy Analytics

Monitor:

• Generated energy

• Consumed energy

• Energy sold to the grid

Analyze data by:

• Minute / Hour / Day / Month / Year

• Compare performance across plants or regions

4. Intelligent Data Logging System

Store historical data in structured databases

Organize by:

• Location groups

• Device types

• Energy flow direction

• Enable fast querying and reporting

5. Automated Reporting & Statistics

Power Reports (iPowerReport)

Reports by:

• Individual devices

• Groups / regions

Calculate:

• Total energy

• Electricity cost

• Profit from solar generation

• Parameter Reports

Analyze electrical quality:

• Voltage stability

• Load behavior

• System efficiency

• Export reports in custom templates for business use

6. Financial Monitoring & Profit Analysis

Track:

• Revenue from selling electricity

• Cost of energy consumption

• Support multi-tariff (3-price electricity) calculations

• Provide clear ROI insights for solar investments

• Solar + Power Integration (Key Advantage)

One of the most powerful capabilities of PMS is integrating solar and power monitoring into a single system.

Combined Monitoring Includes:

• Solar energy generation (from inverters)

• Factory/load consumption (from power meters)

• Grid export and import

• Cash flow tracking (energy revenue vs cost)

This gives operators a complete energy picture, not just isolated data.

Flexible Solar Deployment Models

The PMS supports all common solar farm configurations:

1. Self-Consumption Model

Solar energy used internally

2. Grid-Tied Model

Sell electricity to the grid

3. Hybrid Model (Most Common)

Use + sell electricity simultaneously

Integrate with industrial plants

Technology Foundation (ATSCADA Platform)

The system is built on a powerful SCADA architecture:

• .NET Component-Oriented Architecture (COA)

Supports:

• Desktop SCADA

• Web SCADA

• Cloud SCADA

Compatible with:

• C#, VB.NET development

Plugin-based drivers:

• Easy integration with PLCs & devices

Real-time data via:

• OPC Server

• ATDriver Server

This ensures high performance, scalability, and flexibility for large solar farms.

Real-World Applications

The Solar Farm PMS has been successfully deployed in:

• Industrial solar farms

• Multi-site energy systems

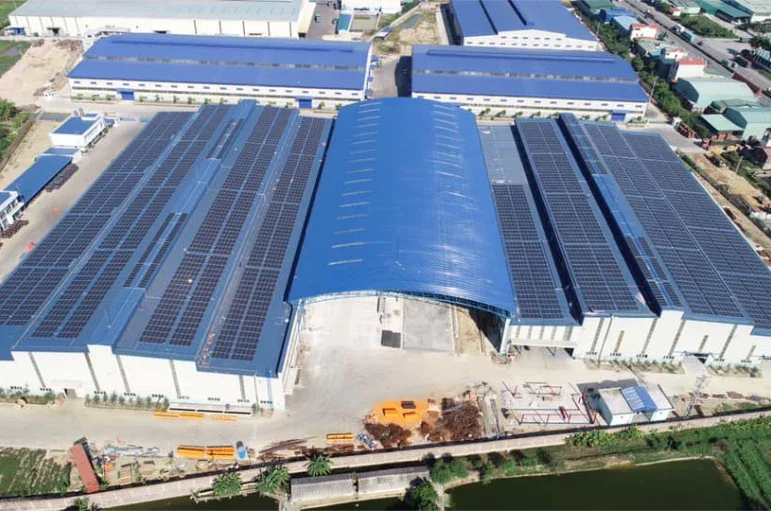

• Manufacturing plants with rooftop solar

• Utility-scale solar projects

Typical Use Cases:

• Monitor hundreds of inverters across regions

• Analyze energy production vs consumption

• Optimize operational efficiency

• Improve investment returns

Key Benefits for Solar Farm Owners

• Centralized monitoring of all assets including backend infrastructures like server room monitoring systems

• Accurate energy and financial analytics

• Reduced operational complexity

• Improved decision-making with real-time data

• Scalable system for future expansion

• Seamless integration with existing infrastructure

Conclusion

The Solar Farm Power Monitoring System (PMS) is not just a monitoring tool — it is a complete energy intelligence platform.

By combining SCADA technology, real-time data, and advanced analytics, PMS empowers solar farm operators to:

• Maximize energy efficiency

• Increase profitability

• Simplify operations

• Gain full visibility across all assets
