Product Description
Applications in Data Centers:
Vaccine storage requires continuous monitoring of environmental conditions to help maintain appropriate storage conditions and detect abnormal changes as early as possible.
ATPro provides a temperature and humidity monitoring solution for vaccine cabinets and vaccine storage areas, combining measurement devices, a central processing unit, and ATSCADA monitoring software. The system can collect temperature and humidity data, display operating conditions locally and remotely, store historical data, and generate alarms when configured thresholds are exceeded.
The solution is particularly suitable for healthcare facilities, medical centers, hospitals, and nurse call system applications, as well as organizations operating multiple vaccine cabinets that require centralized monitoring and automatic data collection.
ATPro provides a temperature and humidity monitoring solution for vaccine cabinets and vaccine storage areas, combining measurement devices, a central processing unit, and ATSCADA monitoring software. The system can collect temperature and humidity data, display operating conditions locally and remotely, store historical data, and generate alarms when configured thresholds are exceeded.
The solution is particularly suitable for healthcare facilities, medical centers, hospitals, and nurse call system applications, as well as organizations operating multiple vaccine cabinets that require centralized monitoring and automatic data collection.
ATPro specifically describes the solution for environments where multiple healthcare centers and multiple vaccine cabinets need centralized monitoring, alerts, and automatic data acquisition.

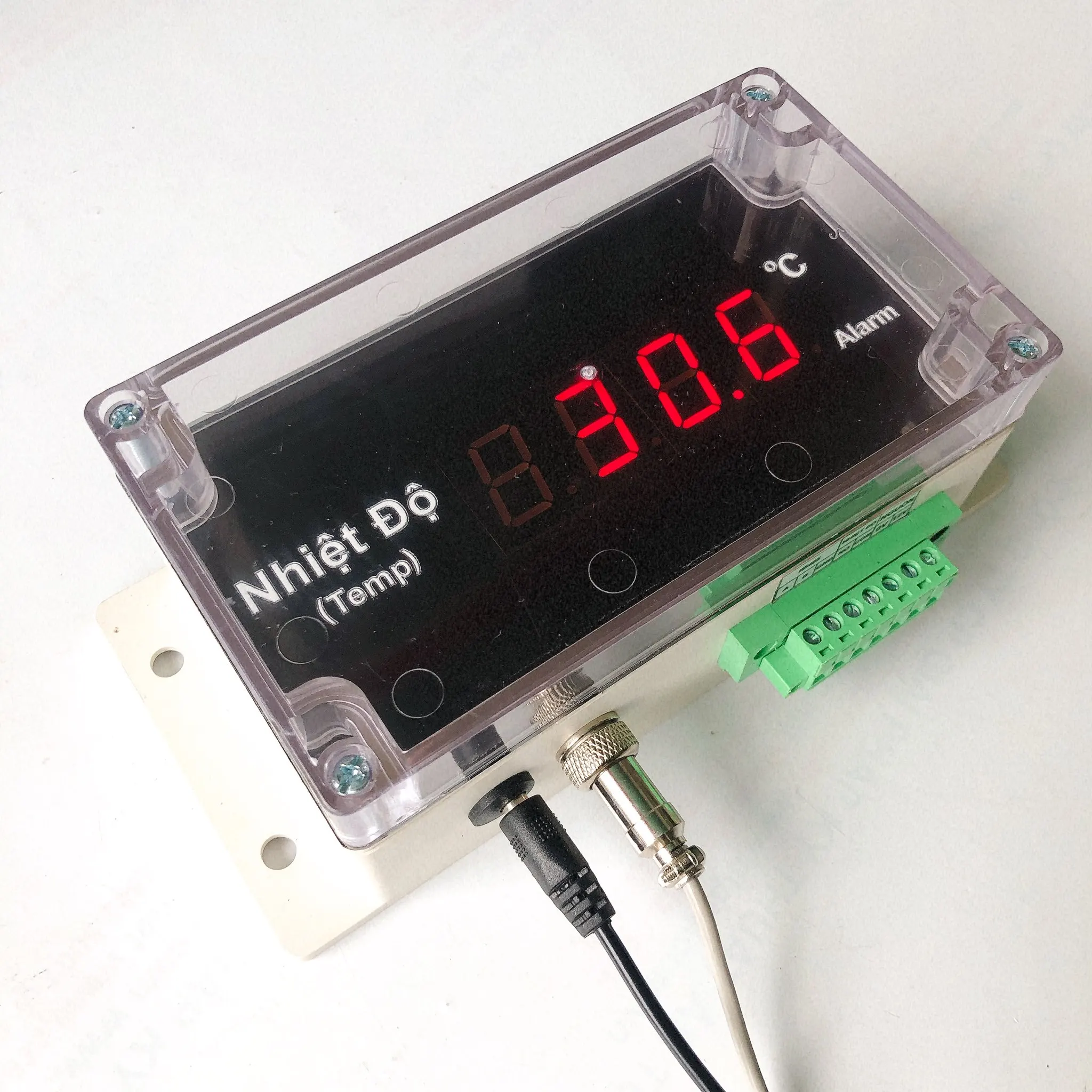

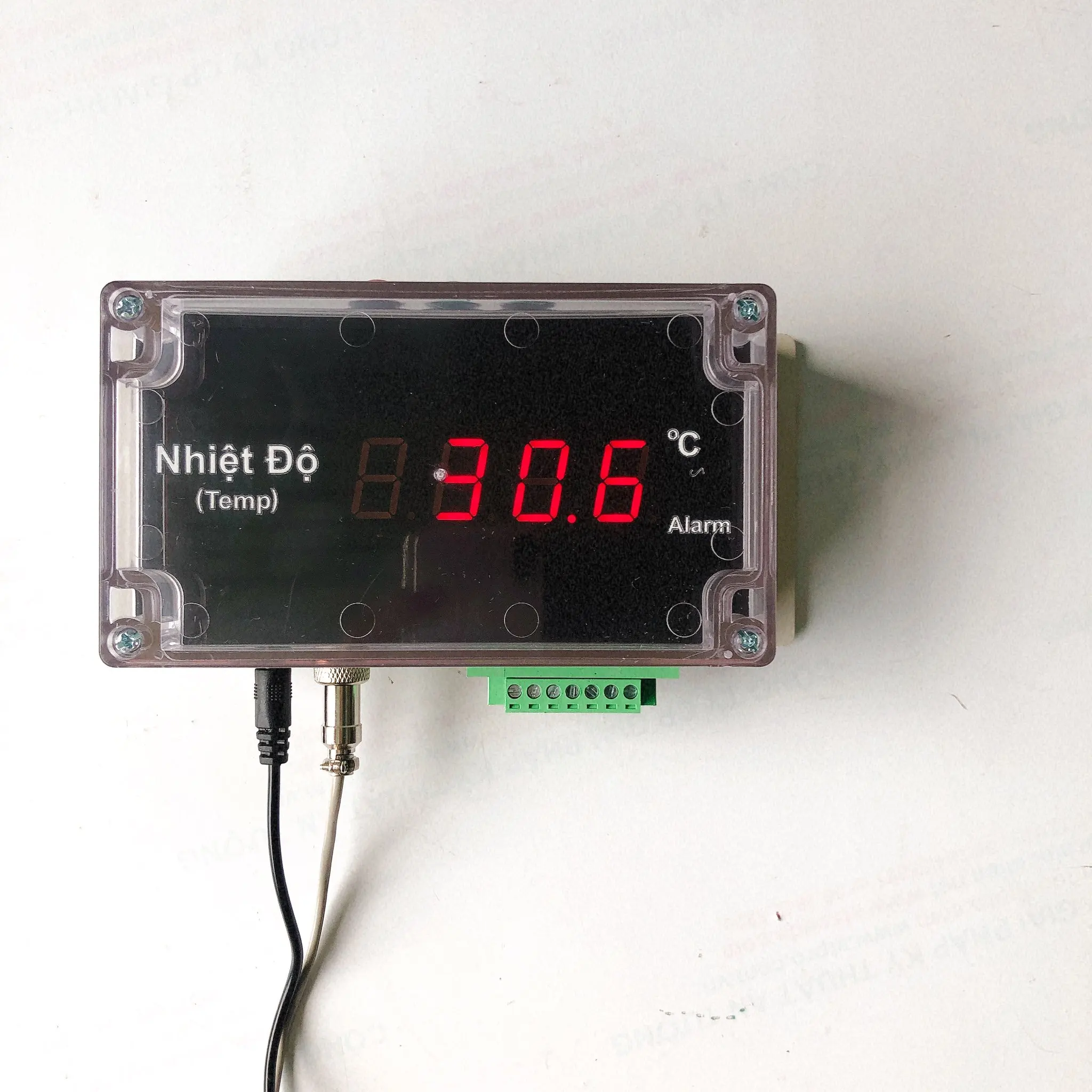

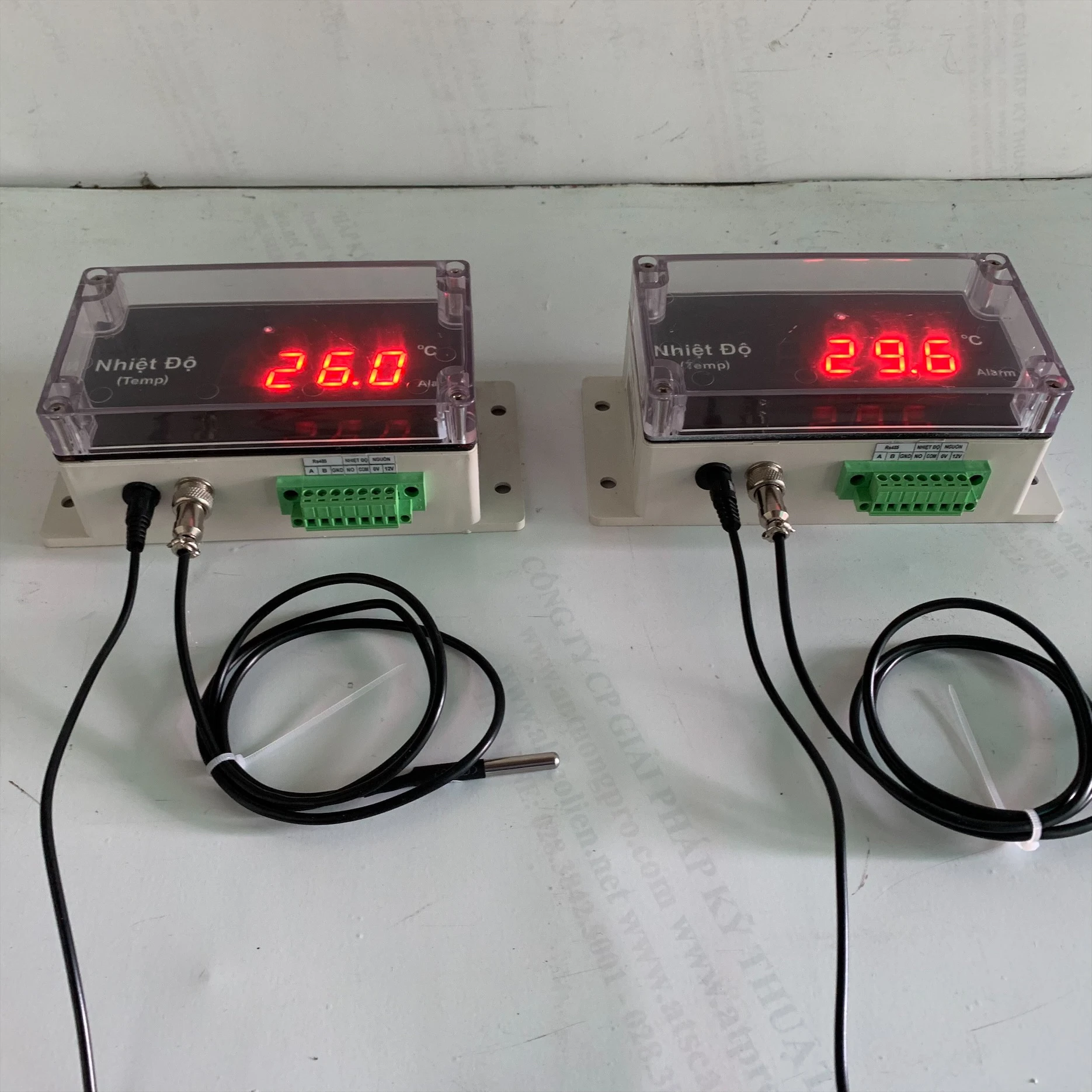

Detail Image Product:

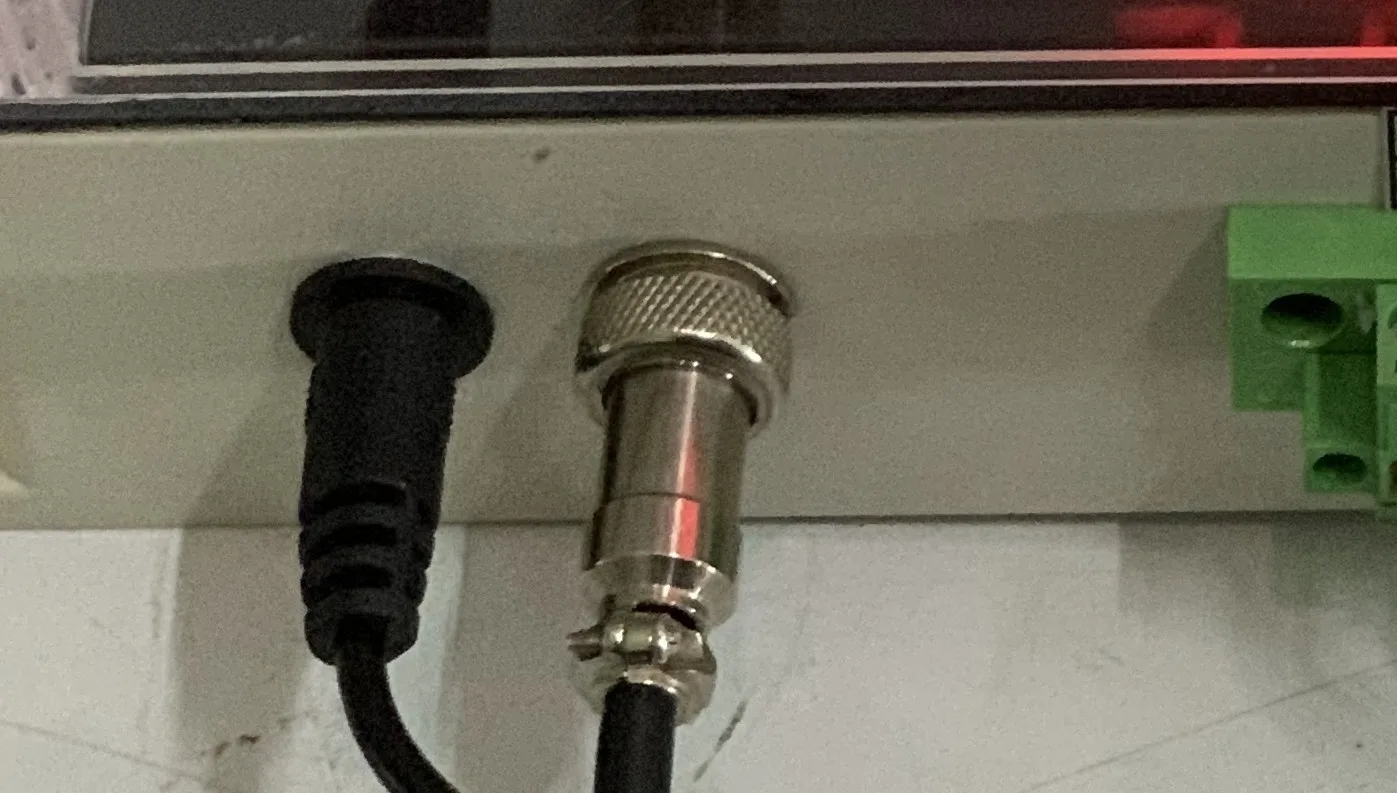

Industrial plastic casing
High-brightness 0.8-inch 6-digit LED display

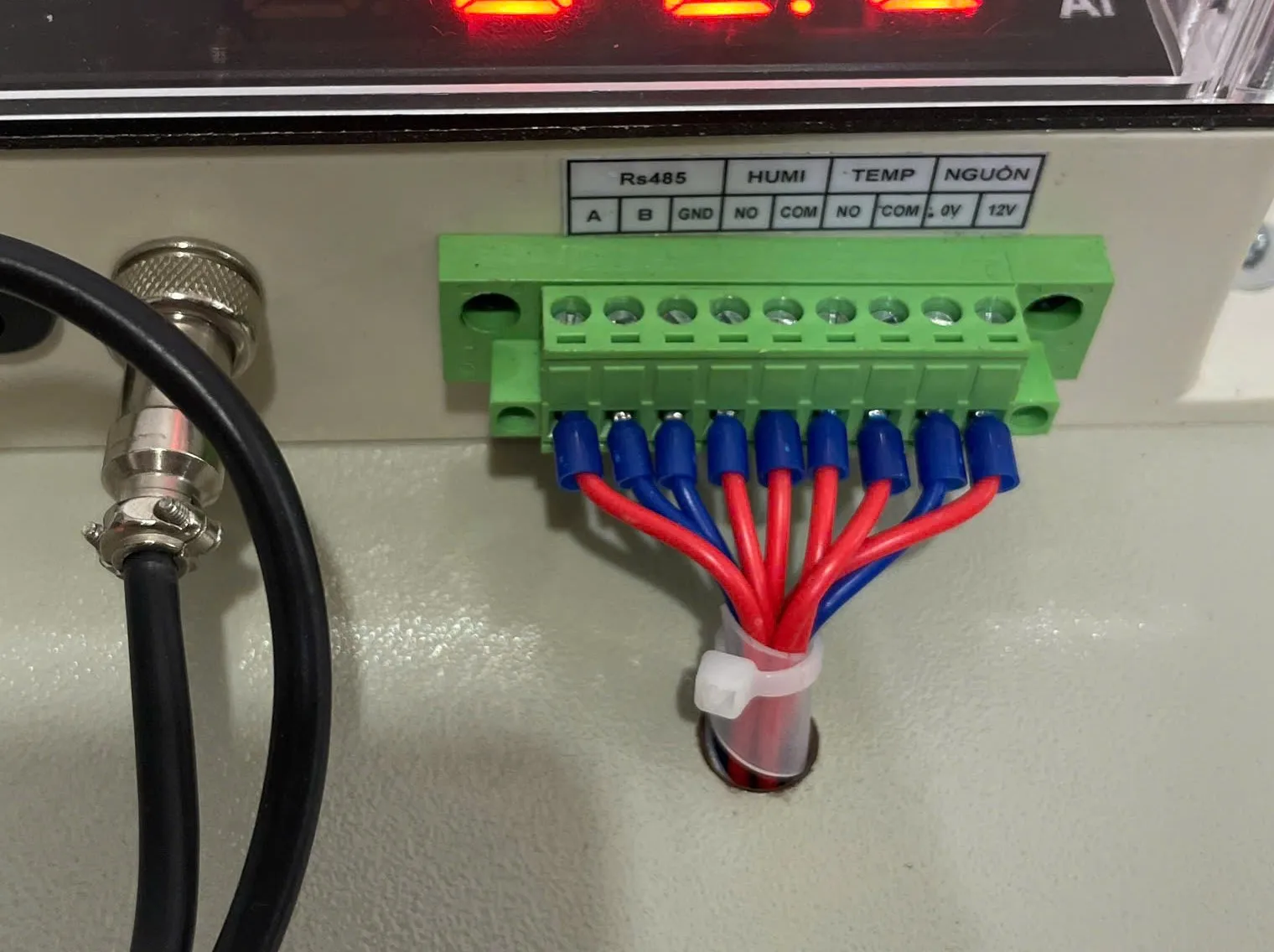

RS485 Modbus port
Relay connection terminal

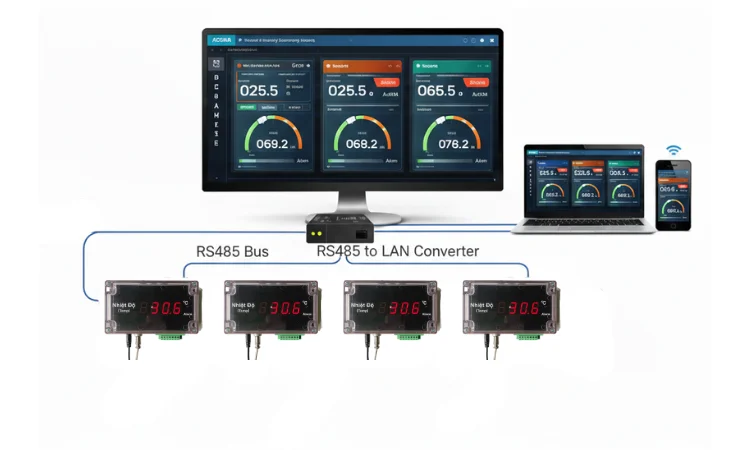

System Integration Diagram:
1. The Problem:
Vaccine cabinets and storage areas need to be monitored regularly because abnormal temperature or humidity conditions may affect storage management.
When monitoring depends mainly on manual inspection and recording, operators may face difficulties such as:
* Difficulty monitoring multiple vaccine cabinets at the same time.
* Abnormal temperature conditions may not be detected immediately.
* Manual data recording requires additional time.
* Historical data is difficult to manage centrally.
* It is difficult to monitor storage conditions when operators are away from the facility.
* Manual monitoring makes it more difficult to maintain a continuous record of environmental conditions.
For systems with multiple vaccine cabinets, ATPro identifies automatic monitoring, alerting, and data collection as important requirements for centralized management
When monitoring depends mainly on manual inspection and recording, operators may face difficulties such as:
* Difficulty monitoring multiple vaccine cabinets at the same time.
* Abnormal temperature conditions may not be detected immediately.
* Manual data recording requires additional time.
* Historical data is difficult to manage centrally.
* It is difficult to monitor storage conditions when operators are away from the facility.
* Manual monitoring makes it more difficult to maintain a continuous record of environmental conditions.
For systems with multiple vaccine cabinets, ATPro identifies automatic monitoring, alerting, and data collection as important requirements for centralized management
2. The Solution:
ATPro provides an IoT-based vaccine temperature and humidity monitoring solution using the AT-TMS3.1 temperature monitor with ATSCADA as the monitoring and data management software platform.
General system structure:
Vaccine Cabinets / Storage Areas → Measurement & Data Acquisition → ATSCADA → Monitoring Interface → Data Storage & Alerts
ATPro describes ATSCADA functions including temperature and humidity monitoring on HMI, smartphone, tablet, laptop, and PC; event reporting to Excel; data storage on the customer server; Webserver-based monitoring and data storage; and control output through PLC when configured temperature thresholds are exceeded.
The system can also connect multiple monitoring devices through an industrial communication network. ATPro describes the use of open Modbus RTU RS485 communication and, when required, RS485-to-Ethernet conversion for integration into LAN/WAN networks of medical centers and hospitals.
When configured temperature or humidity conditions exceed the defined thresholds, the system can provide local and remote alerts. ATPro describes local alarm devices as well as remote SMS and Email notifications.
General system structure:
Vaccine Cabinets / Storage Areas → Measurement & Data Acquisition → ATSCADA → Monitoring Interface → Data Storage & Alerts
ATPro describes ATSCADA functions including temperature and humidity monitoring on HMI, smartphone, tablet, laptop, and PC; event reporting to Excel; data storage on the customer server; Webserver-based monitoring and data storage; and control output through PLC when configured temperature thresholds are exceeded.
The system can also connect multiple monitoring devices through an industrial communication network. ATPro describes the use of open Modbus RTU RS485 communication and, when required, RS485-to-Ethernet conversion for integration into LAN/WAN networks of medical centers and hospitals.
When configured temperature or humidity conditions exceed the defined thresholds, the system can provide local and remote alerts. ATPro describes local alarm devices as well as remote SMS and Email notifications.
3. Key Features:
|
Feature
|
Benefit
|
|
Real-Time Temperature Monitoring
|
Monitors temperature conditions in vaccine cabinets and storage areas.
|
|
Humidity Monitoring
|
Monitors humidity according to the system configuration. |
|
Multi-Cabinet Monitoring
|
Supports centralized monitoring of multiple vaccine cabinets.
|
|
Centralized Data Acquisition
|
Collects monitoring data from connected measurement points into the monitoring system.
|
|
Web-Based Monitoring
|
Provides Webserver-based monitoring and data storage.
|
|
Local Monitoring
|
Supports monitoring through HMI at the local system.
|
|
Remote Monitoring
|
Allows monitoring through smartphone, tablet, laptop, or PC.
|
|
Threshold Alerts
|
Generates alerts when configured temperature or humidity conditions exceed thresholds.
|
|
Local Alarm
|
Supports local warning through alarm devices at configured locations.
|
|
SMS / Email Alerts
|
Sends remote alerts to configured phone numbers and email addresses.
|
|
Historical Data Storage
|
Stores temperature and humidity data for later review.
|
|
Trend Charts
|
Provides trend graphs for reviewing historical changes.
|
|
Event Reporting
|
Supports reporting of alarm events and data export to Excel.
|
|
Remote Control Support
|
Can provide PLC output control when configured conditions are reached.
|
|
Network Integration
|
Supports integration of monitoring points into LAN/WAN architectures through compatible communication interfaces.
|
Benefits for Vaccine Storage Operations
* Continuous Monitoring: Provides continuous visibility of temperature and humidity conditions instead of relying only on periodic manual checks.
* Faster Abnormal Condition Awareness: Alerts can notify responsible personnel when configured thresholds are exceeded.
* Centralized Monitoring: Multiple vaccine cabinets can be monitored through one system.
* Remote Access: Operators can monitor storage conditions remotely through connected devices.
* Historical Data Management: Temperature and humidity data can be stored for later review.
* Trend Analysis: Historical trend charts help users review changes over time.
* Simplified Reporting: Alarm events and data can be exported to Excel.
* Reduced Manual Work: Automatic data acquisition reduces the need for manual recording.
* Control Support: When configured, the system can provide PLC output signals when temperature conditions exceed configured thresholds.
Mobile App ATSCADA.
Web based ATSCADA
Export the report to Excel and send notifications via email and SMS.
View system data on PC.
4. Primary Applications:
* Vaccine Cabinet Temperature Monitoring
* Vaccine Storage Room Monitoring
* Vaccine Cold Chain Monitoring
* Medical centers with multiple vaccine cabinets
* Hospitals and healthcare facilities
* Vaccine storage areas requiring centralized monitoring
* Pharmaceutical storage facilities requiring temperature and humidity monitoring
* Distributed vaccine storage locations requiring remote monitoring and alerts
ATPro specifically describes the system as suitable for multiple medical centers, each with multiple vaccine cabinets, where centralized monitoring, alerting, and automatic data collection are required.
ATSCADA also documents healthcare temperature and humidity monitoring projects, including projects at Hung Vuong Hospital and Oncology Hospital.
5. Target Customers:
* Hospitals
* Medical centers
* Preventive medicine centers
* Healthcare facilities
* Vaccine storage facilities
* Pharmaceutical companies
* Organizations managing multiple vaccine cabinets
* Cold-chain operators
* System Integrators implementing healthcare monitoring systems
Technical Specification
|
Parameter
|
Specification
|
|
System Type
|
Vaccine Storage Temperature & Humidity Monitoring System
|
|
Monitoring Platform
|
ATSCADA
|
|
Monitoring Parameters
|
Temperature and humidity
|
|
Local Interface
|
-40°C to +125°C (±1°C accuracy)
|
|
Web Interface
|
Webserver-based monitoring and data storage
|
|
Remote Monitoring
|
Smartphone, tablet, laptop, and PC
|
|
Data Acquisition
|
Automatic collection of temperature and humidity data
|
|
Data Storage
|
Data storage on the configured customer server / system storage
|
|
Historical Data
|
Historical temperature and humidity data
|
|
Trend Visualization
|
Historical trend charts
|
|
Alarm Conditions
|
Configurable temperature and humidity thresholds
|
|
Local Alarm
|
Local warning at configured monitoring locations
|
|
Remote Notification
|
SMS / Email
|
|
Reporting
|
Alarm-event reports and Excel export
|
|
Communication
|
Open industrial communication such as Modbus RTU RS485; network integration according to system architecture
|
|
PLC Integration
|
PLC output can be used for control when configured conditions are reached
|
|
System Scope
|
Multiple vaccine cabinets / multiple monitoring points
|
|
System Expansion
|
Can be configured for additional monitoring points according to project requirements
|
OEM Support:
ATPro can configure and develop the monitoring system according to the actual requirements of healthcare and vaccine-storage projects. Project-based customization can include:
* Number of vaccine cabinets or monitoring points.
* Monitoring interface configuration.
* Web monitoring interface.
* Alarm threshold configuration.
* SMS and Email notification settings.
* Data storage configuration.
* Reporting requirements.
* PLC output and control requirements.
* Communication and network architecture.
* Expansion for additional monitoring locations.
ATPro's published solution is already designed for systems with multiple vaccine cabinets and multiple healthcare centers, supporting centralized monitoring, automatic data collection, and remote alerts.
WHY CHOOSE US
Dedicated Vaccine Storage Monitoring Application
This is not only a general temperature-monitoring platform. ATPro provides a specific solution for vaccine cabinets and vaccine storage environments, with temperature/humidity monitoring, alerts, data storage, reporting, and remote access.
Centralized Monitoring
Multiple vaccine cabinets and monitoring points can be managed through a centralized system, helping healthcare organizations consolidate environmental data.
Remote Monitoring & Alerts
Operators can monitor the system remotely through connected devices, while SMS and Email alerts can be sent when configured thresholds are exceeded.
Historical Data & Reporting
The system stores temperature and humidity data and provides trend visualization and Excel reporting for reviewing operating history and alarm events.
Monitoring + Control
The system can go beyond monitoring. When configured, temperature conditions can trigger a PLC output for control functions.
Practical Healthcare Projects
ATSCADA documents healthcare temperature and humidity monitoring projects at Hung Vuong Hospital and Oncology Hospital, demonstrating practical application of the solution in healthcare environments.
CALL TO ACTION
Looking for a Vaccine Storage Temperature Monitoring Solution?
Contact ATPro to discuss:
* Number of vaccine cabinets.
* Vaccine storage areas requiring monitoring.
* Temperature and humidity monitoring requirements.
* Alarm thresholds.
* SMS and Email notification requirements.
* Remote monitoring requirements.
* Historical data and reporting requirements.
* PLC control requirements.
* Communication and network architecture.
* Future system expansion.
Contact ATPro to discuss a vaccine storage monitoring and control configuration suitable for your actual healthcare project requirements.
