Product Overview
Temperature control is a critical requirement in many industrial environments such as factories, warehouses, cold storage areas, and technical rooms. A small temperature change can directly affect product quality, equipment performance, and storage safety.
The AT-TMS3.1 is an industrial temperature monitoring device designed to measure and display temperature values in real time. With a compact structure, clear LED display, wide measuring range, and optional RS485 Modbus communication, it is a practical solution for indoor temperature supervision.
Overview of AT-TMS3.1 Temperature Monitor

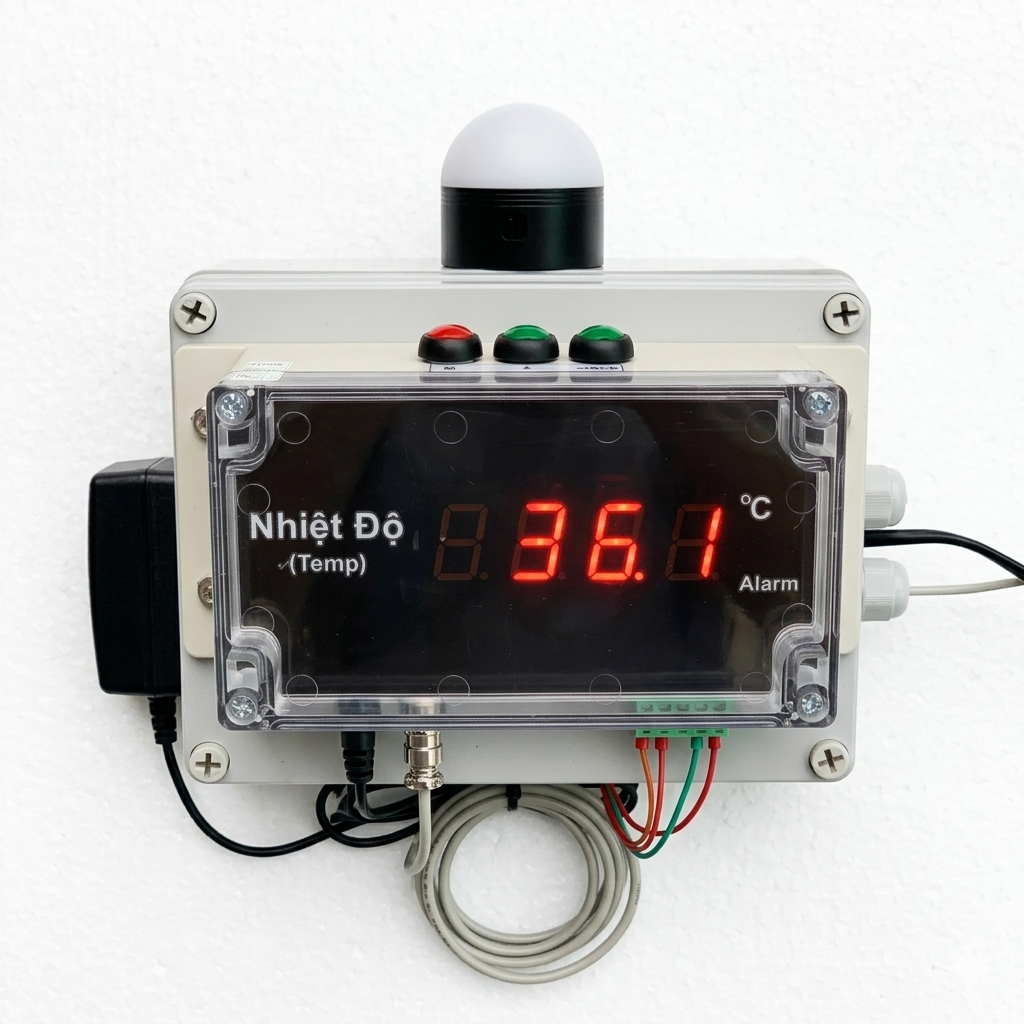

The AT-TMS3.1 is a digital temperature monitor that provides continuous temperature readings through an LED display. Unlike handheld thermometers, this device can be installed permanently in a specific location, allowing operators to monitor temperature conditions easily without manual checking.
This model is suitable for industrial indoor environments where stable temperature monitoring is required.
Key Features
The AT-TMS3.1 is designed for stable temperature monitoring in industrial indoor environments. With a clear LED display, wide measuring range, and optional RS485 Modbus communication, this device supports continuous supervision and helps reduce temperature-related risks in factories and storage areas.
Red LED Display
The device uses a red LED display, making temperature readings easy to see in industrial working conditions similar to large-format temperature humidity displays.
Wide Temperature Measuring Range
AT-TMS3.1 supports a wide measurement range, making it suitable for many industrial applications:
- Temperature range: -40°C to +125°C
· High Resolution and Accuracy
For stable monitoring, the device provides:
- Resolution: 0.1°C
- Accuracy: ±1°C
This ensures temperature values are displayed clearly and consistently.
Optional Modbus RTU RS485 Communication

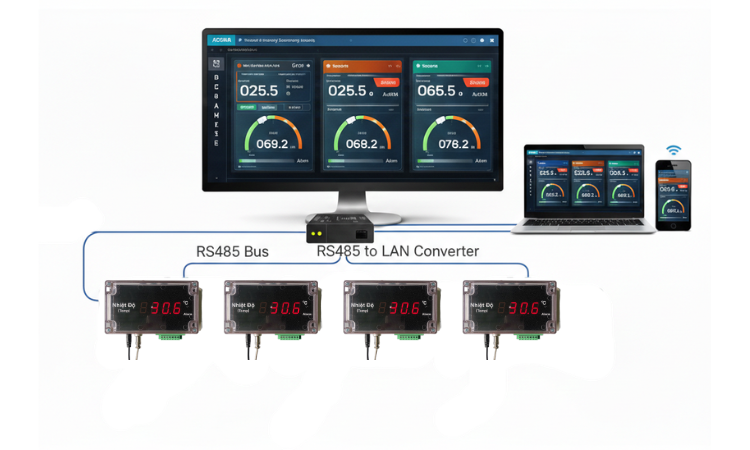

The AT-TMS3.1 supports Modbus RTU RS485 communication (optional), allowing integration with PLC or SCADA systems for centralized monitoring and data logging.
Standard Power Supply and Protection
The device operates using standard industrial power:
- Power supply: 100–240V AC, 50/60Hz
- Protection rating: IP50
It is designed for indoor use in industrial environments.
Technical Specifications
|
Temperature measurement device product code |
AT-TMS-3.1 |
|
Brand |
ATPro |
|
Application |
LED temperature measurement display |
|
Overall dimensions of temperature measurement device |
155mm x 88mm x 65mm |
|
Adjustment |
Via computer software |
|
LED Digits |
3 high-quality 0.8-inch digits |
|
Temperature measurement device LED color |
Red, Amber, Blue, Green; Default: Red |
|
Material |
Plastic box |
|
Installation |
Temperature measurement device control cabinet |
|
Energy saving |
Low power consumption LED |
|
Power Adapter |
Uses external adapter |
Temperature measuring device specifications
|
Power supply |
100-240V AC 50 / 60HZ |
|
Working environment for temperature measurement device |
-10 °C ~ 50 °C, 0 ~ 95% RH |
|
Measurement range and accuracy |
-40 ~ 125 °C, ± 1 °C |
|
Temperature resolution |
0.1 °C |
|
Power consumption |
<5 Watt |
|
Net weight |
1.3 kg |
|
Gross weight of temperature measurement device |
1.5 kg |
|
Packaging size |
175mm x 108mm x 80mm |
|
Power jack standard |
US / UK / AU / EU |
Applications
The AT-TMS3.1 temperature monitor is widely used in many environments, including:
- Factories and production facilities
- Warehouses and storage areas

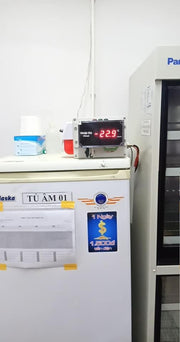

- Cold storage rooms
- Server rooms and technical rooms
- Medical storage and controlled indoor areas
By providing real-time temperature data, the device helps operators detect abnormal temperature changes early and take action quickly.
Benefits of Using an Industrial Temperature Monitor
Using a fixed LED temperature monitoring device provides important advantages:
- Continuous real-time monitoring
- Easy-to-read display for quick supervision
- Reduced risk of temperature-related damage
- Optional integration into automation systems via RS485 Modbus together with devices such as temperature humidity sensors
- Improved operational stability and safety
“For more information about the AT-TMS3.1 thermometer, please refer to the following”
Conclusion
The AT-TMS3.1 is a compact and reliable industrial temperature monitor designed for indoor applications. With a wide measuring range, clear red LED display, high resolution, and optional Modbus RTU RS485 communication, it is an effective solution for factories, warehouses, cold storage facilities, and other controlled environments.
If you are looking for a professional device to support real-time temperature supervision, AT-TMS3.1 is a practical choice for industrial monitoring.
