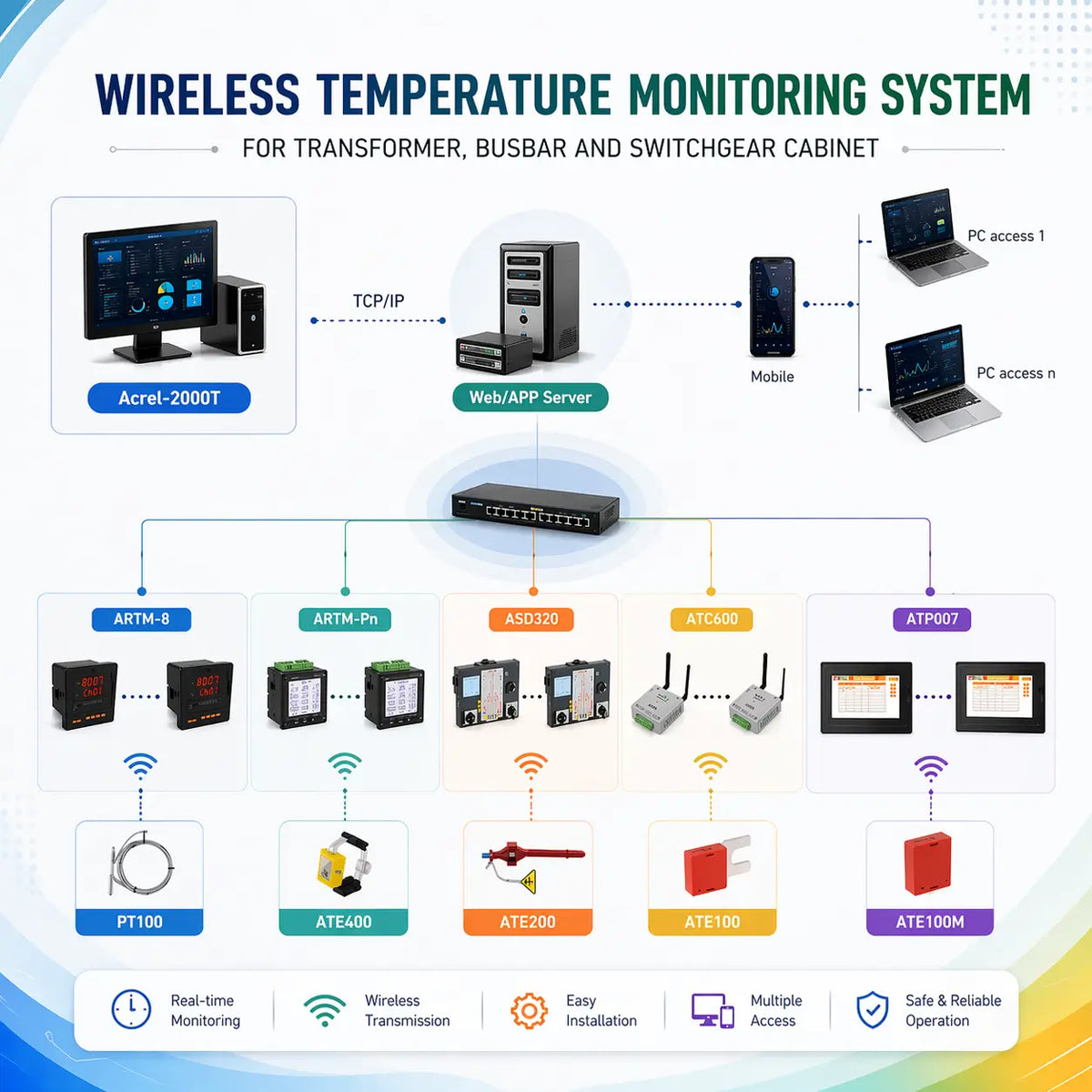

Diagram of wireless temperature monitoring system for transformers, busbars, and switchgear cabinets, showing sensors, modules, server, and real-time monitoring features
1/4
Busbar Temperature Monitoring System for Electrical Panel

Busbar Temperature Monitoring System for Electrical Panel

$1,143.00 USD

Busbar Temperature Monitoring System for Electrical Panel – Smart Temperature Monitoring System to Prevent Electrical Failures

Why Your Facility Needs a Temperature Monitoring System?

In industrial electrical panels, busbars operate under high and continuous electrical loads. However, many businesses still Facilities with high electrical loads face critical issues:

  • Temperature rise is not detected in real time

  • Manual inspection is inconsistent and unreliable

  • Electrical risks are often discovered too late

As a result:

  • Electrical panel overheating leads to fire hazards

  • Unexpected downtime disrupts production

  • Equipment damage increases operational costs

Without a temperature monitoring system, businesses remain in a reactive position, only responding after failures occur.

Overview of Busbar Temperature Monitoring System for Electrical Panel

The Busbar Temperature Monitoring System for Electrical Panel is a complete temperature monitoring system designed based on SCADA and IoT technology.

This system enables:

  • Continuous 24/7 temperature monitoring

  • Instant alerts when abnormal conditions occur

  • Remote supervision across multiple devices

  • Centralized data storage and reporting

It combines hardware and software into a unified temperature monitoring system that operates in real time.

System Architecture of the Temperature Monitoring System

1. Hardware Layer

Central Control Unit (PLC + HMI + Gateway)

  • HMI touchscreen for real-time visualization

  • PLC for processing and alarm logic

  • Gateway for transmitting data to the system

  • Integrated power supply and protection

Busbar Temperature Sensors

  • Installed directly on busbars

  • Measure temperature continuously

  • Transmit accurate data to the controller

2. ATSCADA Software Platform

The system uses ATSCADA to deliver a powerful temperature monitoring system experience:

  • Real-time monitoring via:

        - HMI

        - Smartphone

        - Laptop / PC

  • Email alert notifications without limitation

  • Centralized server data storage

  • Excel report export by time range

  • Web-based SCADA interface

  • Output control when temperature exceeds limits

How the Temperature Monitoring System Works

The temperature monitoring system operates through a closed-loop process:

Step 1: Data Collection

  • Sensors measure busbar temperature continuously

  • Data is transmitted to the central controller

Step 2: Data Processing

  • PLC analyzes incoming data

  • Compares values with predefined thresholds

Step 3: Real-Time Monitoring

Data is displayed on:

  • Local HMI

  • Web SCADA platform

  • Mobile devices

Step 4: Alarm & Notification

When thresholds are exceeded, the temperature monitoring system will:

  • Activate on-site alarms (light and buzzer)

  • Send instant email alerts

  • Step 5: Data Logging & Reporting

  • All data is stored continuously

  • Users can:

         - Review historical data

         - Export Excel reports

         - Analyze trends

Benefits of Using a Temperature Monitoring System

  • Early Detection of Electrical Issues

        - Identify overheating before failure occurs

        - Reduce fire and safety risks

  • Remote Monitoring Capability

        - Access the temperature monitoring system anytime

        - Eliminate the need for manual inspection

  • Improved System Reliability

        - Continuous and accurate monitoring

        - Minimize human errors while integrating with factory production management systems

  • Access the temperature monitoring system anytime Advanced Data Management

         - Store and analyze long-term data

         - Generate reports quickly

  • Cost Optimization

        - Reduce downtime

        - Prevent costly equipment damage

Applications of the Temperature Monitoring System

The Busbar Temperature Monitoring System for Electrical Panel is suitable for:

  • Industrial factories

  • Power plants and substations

  • Main distribution boards (MSB, MDB)

  • Data centers

  • Facilities with high electrical loads and extended applications such as vehicle temperature monitoring systems

Why You Should Deploy This Temperature Monitoring System Now

Without a temperature monitoring system:

  • You cannot detect abnormal heat in time

  • You only react after incidents happen

  • The cost of failure is significantly higher

With this temperature monitoring system:

Conclusion

The Busbar Temperature Monitoring System for Electrical Panel is more than just a measurement tool. It is a complete temperature monitoring system that provides:

  • Proactive electrical safety protection

  • Real-time monitoring and alerting

  • Reliable and efficient system operation
