Product Overview
Are You Losing Control Over Temperature and Humidity in Your Facility?
In many industrial environments, maintaining stable conditions is critical. However, businesses still struggle with:
-
No real-time temperature and humidity monitor system
-
Manual checking causing delays and human error
-
Lack of alerts when conditions exceed thresholds
-
No centralized temperature and humidity monitor data
-
Inability to integrate temperature and humidity monitor into SCADA
=> These issues can lead to product damage, unstable production, and costly downtime.
A professional temperature and humidity monitor is no longer optional—it’s essential.

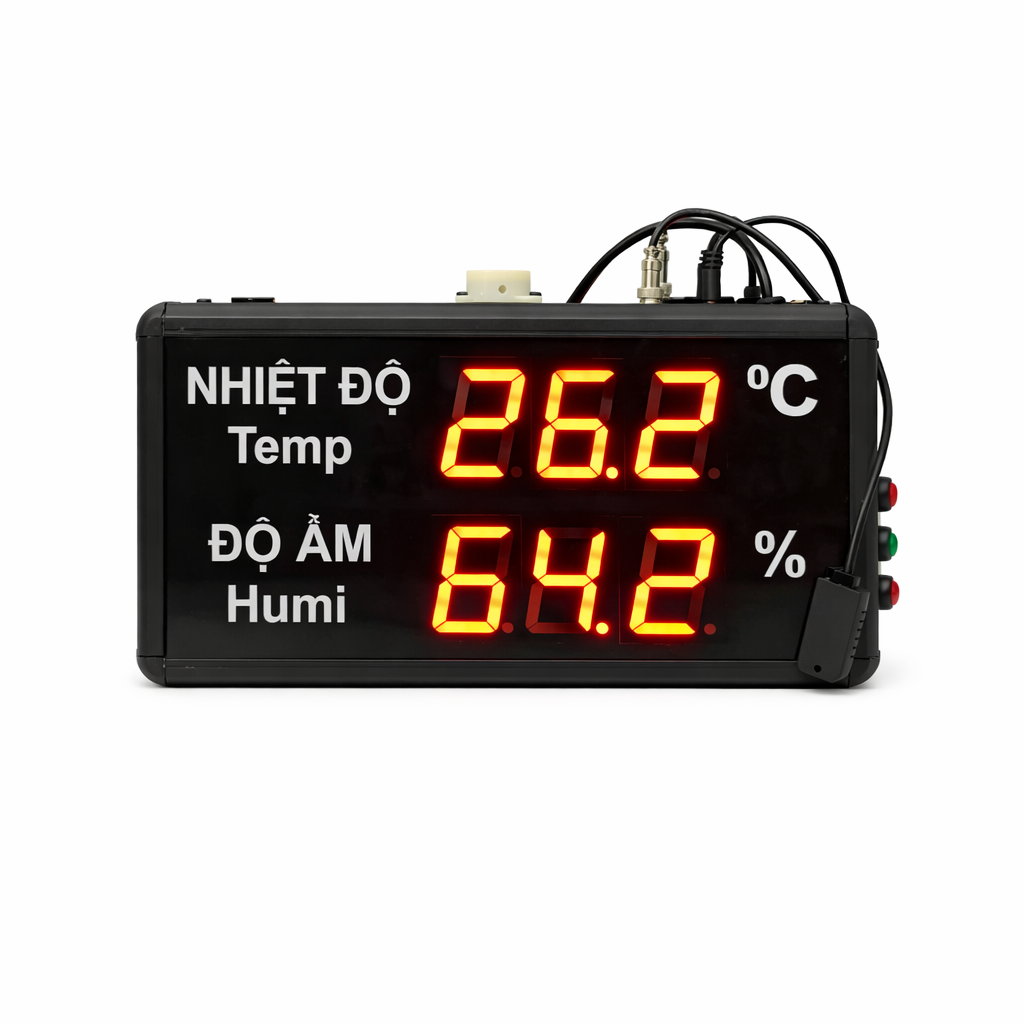

AT-THMT-S – Industrial Temperature and Humidity Monitor with LED Display
The AT-THMT-S is a high-performance temperature and humidity monitor designed for continuous indoor environmental monitoring.
Unlike traditional devices, this temperature and humidity monitor provides:
-
Real-time LED display
-
High visibility from long distances
-
Continuous and stable data output
When integrated with ATSCADA Custom Component, this temperature and humidity monitor becomes part of a smart monitoring ecosystem.
Why Businesses Need a Reliable Temperature and Humidity Monitor
1. Real-Time Visibility Instead of Manual Checks
A modern temperature and humidity monitor eliminates delays by providing instant readings.
=> Operators can react immediately when conditions change.
2. Prevent Product Loss and Quality Issues
An accurate temperature and humidity monitor ensures:
-
Stable storage conditions
-
Reduced spoilage
-
Consistent product quality
3. Smart Integration with Automation Systems
With RS485 Modbus RTU, this temperature and humidity monitor connects easily to:
-
PLC systems
-
SCADA platforms
-
ATSCADA Custom Component dashboards
Key Features of AT-THMT-S Temperature and Humidity Monitor
-
Large LED Display for Industrial Visibility
This temperature and humidity monitor features:
-
6 large LED digits
-
Viewing distance up to 60m
-
Multiple LED color options
Ideal for factories and warehouses.
-
Wide Measurement Range
The AT-THMT-S temperature and humidity monitor supports:
-
Temperature: -40°C to +125°C
-
Humidity: 0% to 100% RH
Suitable for various industrial environments.
-
High Accuracy Monitoring
This temperature and humidity monitor delivers:
-
Accuracy: ±1°C / ±5% RH
-
Resolution: 0.1°C / 0.1% RH
Ensures reliable environmental control.
-
Industrial-Grade Design
The temperature and humidity monitor is built with:
-
Aluminum alloy frame
-
Anti-glare acrylic panel
-
IP50 protection (indoor use)
-
Modbus RS485 Integration (Optional)
This temperature and humidity monitor supports:
-
PLC/SCADA connectivity
-
Integration with ATSCADA Custom Component
-
Centralized monitoring systems via wireless solutions like RS485 LoRa converters
Technical Specifications
|
Model |
AT-THMT-S |
|
Brand |
ATPro |
|
Application |
LED Temperature and Humidity Display |
|
Overall Dimensions |
350mm x 600mm x 50mm |
|
Adjustment |
Buttons on the right side of the screen |
|
LED Digits |
6 high-quality 4.0-inch digits |
|
Viewing Distance |
60m |
|
LED Color |
Red, Amber, Blue, Green (Red is default) |
|
Material |
Black aluminum alloy frame, sturdy industrial-grade aluminum internal structure. High-quality anti-glare acrylic panel. Laser-engraved characters with professional coating |
|
Installation |
Wall-mounted |
|
Energy Saving |
Low power consumption LEDs |
|
Power Adapter |
Uses external adapter |
Technical & Environmental Specifications
|
Power Supply |
100-240V AC 50 / 60Hz |
|
Operating Environment |
-10°C ~ 50°C, 0 ~ 95% RH |
|
Measuring Range & Accuracy |
-40 ~ 125°C, ± 1°C; rH, ± 5% |
|
Resolution |
0.1°C; 0.1% RH |
|
Power Consumption |
< 5 Watts |
|
Net Weight |
1.3 kg |
|
Gross Weight |
1.5 kg |
|
Packaging Size |
370mm x 620mm x 70mm |
|
Power Jack Standard |
US / UK / AU / EU |
Applications of Temperature and Humidity Monitor AT-THMT-S
This temperature and humidity monitor is widely used in:
-
Manufacturing factories
-
Warehouses and logistics centers
-
Cold storage facilities
-
Office buildings
-
Controlled environments
When deployed with ATSCADA Custom Component, the temperature and humidity monitor enables:
-
Centralized monitoring
-
Historical data tracking
-
Automated alerts
Why Temperature and Humidity Monitoring Is Critical
Without a proper temperature and humidity monitor, businesses risk:
-
Product degradation
-
Equipment malfunction
-
Increased maintenance costs
-
Production instability
A reliable temperature and humidity monitor helps detect issues early and maintain optimal conditions.
Enhance Performance with ATSCADA Custom Component
By integrating this temperature and humidity monitor with ATSCADA Custom Component, businesses gain:
-
Real-time dashboards
-
Data analytics
-
Smart alarm systems
-
Multi-device integration with cloud connectivity through LoRaWAN MQTT gateways
This transforms a basic temperature and humidity monitor into a full industrial monitoring solution.
Conclusion
The AT-THMT-S is a powerful temperature and humidity monitor designed for modern industrial environments.
With:
-
Real-time LED display
-
High measurement accuracy
-
Durable industrial design
-
SCADA integration capability
This temperature and humidity monitor is the ideal choice for businesses looking to improve environmental control, reduce risks, and optimize operations.
