Server Room Monitoring & Busbar Temperature Solution

July 24, 2026

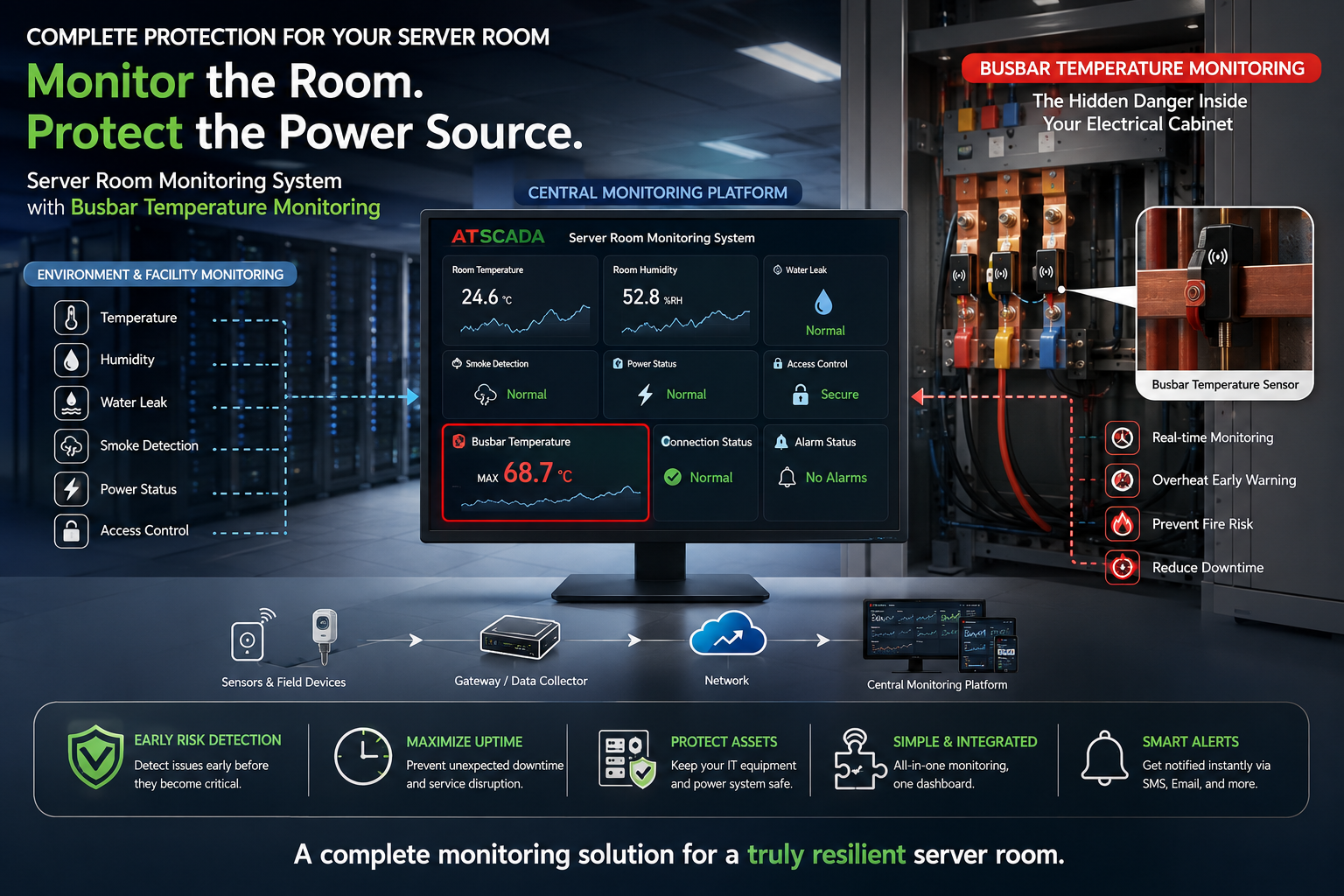

Server room monitoring and busbar temperature monitoring system with centralized SCADA

Complete Server Room Monitoring: Don’t Overlook Electrical Cabinet Temperature

A reliable server room requires more than stable temperature and humidity.

While most facilities monitor environmental conditions such as heat, humidity, water leakage, and smoke, one critical risk can still be overlooked: abnormal temperature inside the electrical cabinet supplying power to the servers.

A complete monitoring strategy should therefore cover both server room conditions and electrical infrastructure.

What Should Be Monitored in a Server Room?

A modern Server Room Monitoring System provides centralized visibility of critical operating conditions.

Key monitoring points include:

Temperature and humidity
Water leakage
Smoke and fire conditions
Door and access status
Power conditions
Real-time alarms and notifications

Instead of relying on periodic manual inspections, operators can continuously monitor these parameters through a centralized system.

However, there is one important limitation.

Normal room temperature does not always mean the electrical system is operating normally.

The Hidden Risk Inside Electrical Cabinets

Electrical cabinets such as MSB and MDB distribute power to critical server infrastructure.

Busbars and their connection points continuously carry electrical loads. Loose connections, increased contact resistance, or abnormal operating conditions can result in localized temperature increases.

The problem is that this heat may remain concentrated inside the cabinet.

For example:

Server room temperature → Normal
Humidity → Normal
Cooling system → Running
Busbar connection → Abnormally hot

A standard room temperature sensor may not detect this condition early because it measures the surrounding environment rather than the electrical connection itself.

Add Busbar Temperature Monitoring

A Busbar Temperature Monitoring System provides continuous temperature monitoring directly at critical points inside electrical cabinets.

This allows facility teams to:

Detect abnormal temperature increases earlier
Monitor critical busbar points continuously
Identify locations requiring inspection
Configure temperature alarm thresholds
Reduce manual temperature checks
Analyze historical temperature trends

For server rooms and data centers, this adds an important electrical monitoring layer to the existing environmental monitoring system.

One Integrated Monitoring Solution

Environmental monitoring and electrical cabinet monitoring do not need to operate separately.

Both can be integrated into a centralized architecture:

Environmental Sensors + Busbar Temperature Sensors → Gateway/Controller → ATSCADA → Alarm & Reporting

This allows operators to monitor different risks from one platform.

When Room Temperature Is High

The maintenance team can check:

HVAC system
Cooling units
Airflow
Server heat load

When Busbar Temperature Is High

The electrical team can inspect:

Busbar connections
Electrical terminals
Contact points
Cabinet operating conditions

The system therefore provides more than an alarm—it helps operators understand where the abnormal condition is occurring and which area should be inspected.

Key Benefits for Server Room Operations

Integrating both monitoring functions provides several practical benefits:

24/7 Monitoring – Continuously track environmental and electrical conditions.
Early Warning – Identify abnormal conditions before they develop into larger problems.
Centralized SCADA – View monitoring data from one platform.
Faster Troubleshooting – Distinguish between environmental and electrical problems.
Remote Alerts – Receive notifications when configured limits are exceeded.
Historical Data – Review temperature trends and previous alarm events.
Reduced Manual Inspection – Monitor critical points continuously instead of depending only on periodic checks.
Scalable Architecture – Expand the system for additional rooms, sensors, or electrical cabinets.

Ideal Applications

This integrated monitoring approach is suitable for:

Data centers
Enterprise server rooms
Banks and financial institutions
Hospitals
Telecom facilities
Industrial factories
Network and control rooms
Facilities with critical IT infrastructure

It can be implemented in both new projects and existing server room upgrades.

Complete the Server Room Monitoring Strategy

Monitoring temperature, humidity, smoke, and water leakage is essential—but these parameters only describe part of the server room environment.

The electrical infrastructure supplying power to critical IT equipment also requires visibility.

By combining server room environmental monitoring with busbar temperature monitoring, operators can create a more complete monitoring architecture:

Monitor the Room → Monitor the Electrical Cabinet → Centralize Data → Detect Abnormalities → Respond Faster

Instead of managing multiple independent monitoring systems, ATPro can integrate sensors, controllers, gateways, and ATSCADA software into one project-based solution.
