Product Overview

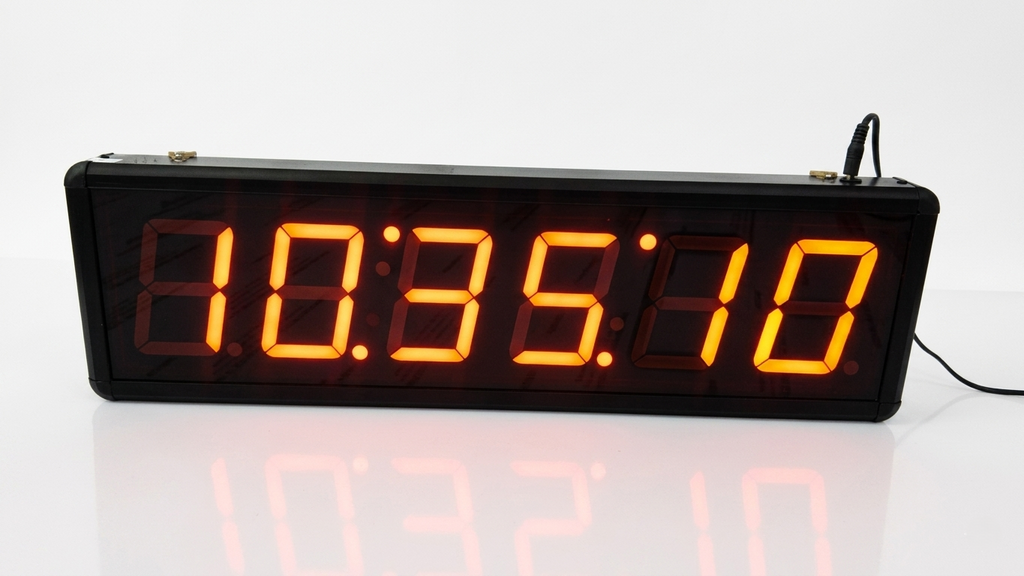

The ATC-HHMMSS-T Industrial LED Wall Clock is a professional time display solution designed for factories, warehouses, hospitals, schools, offices, and industrial facilities requiring accurate and highly visible time synchronization.
Featuring a large 6-digit HH:MM:SS display, high-brightness 7-segment LEDs, and industrial-grade construction, the clock delivers clear visibility from long distances while ensuring stable operation in demanding environments. Designed and manufactured by ATPro, the system can also be customized with OEM options including communication interfaces, LED colors, housing materials, and display sizes.
Application
The ATC-HHMMSS-T Industrial LED Wall Clock is widely used for:
-
Office buildings and meeting rooms
-
Manufacturing facilities and production lines
-
Warehouses and logistics centers
-
Cold storage facilities
-
Hospitals and medical centers
-
Educational institutions
-
Shopping malls and public buildings
-
SCADA, MES, and Andon systems
-
Industrial automation projects
• Facilities requiring both time synchronization and environmental monitoring can also deploy Temperature Humidity Date Time Display solutions
The Problem
Many organizations face challenges when using conventional wall clocks in large facilities.
Common issues include:
-
Small clock displays that are difficult to read from a distance
-
Poor visibility under strong lighting conditions
-
Limited durability in industrial environments
-
High costs associated with imported display systems
-
Lack of synchronization between departments and production areas
-
Difficulty integrating time displays into existing SCADA or MES systems
These challenges can reduce productivity, affect operational coordination, and create inefficiencies in daily activities.
The Solution
The ATC-HHMMSS-T Industrial LED Wall Clock provides a reliable and cost-effective solution for professional time display applications.
With large LED digits, industrial-grade electronics, and high-accuracy RTC technology, the clock ensures consistent time synchronization across production facilities, warehouses, hospitals, schools, and commercial buildings.
The flexible OEM design also enables customization for specific project requirements, including communication interfaces, branding, display size, and additional functionality.

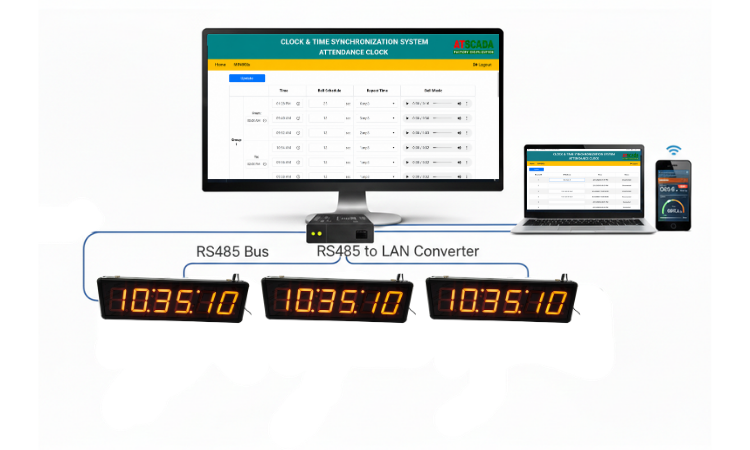

System Integration Diagram
Key Features
| Feature | Description |
|---|---|
| 6-Digit HH:MM:SS Display | Clear hour, minute, and second display |
| Large LED Characters | 9 cm × 12 cm per digit |
| High Visibility | Readable from up to 15 meters |
| Wide Viewing Angle | ≥120° viewing angle |
| RTC Backup System | Maintains accurate time during power outages |
| Microchip PIC Controller | Stable and reliable operation |
| Industrial Housing | Taiwan acrylic or optional aluminum enclosure |
| Low Maintenance Design | Long service life and easy installation |
| Multiple LED Colors | Red, Green, Blue, or Yellow |
| OEM Customization | Flexible hardware and communication options |
Software Benefits
Optional communication interfaces can be added to support integration with industrial automation systems.
Benefits include:
-
Time synchronization across facilities
-
Integration with SCADA systems
-
MES and Andon compatibility
-
Centralized time management
-
Reduced manual adjustments
-
Improved production coordination
-
Enhanced operational efficiency
- Can be combined with Industrial LED Temperature Display systems to provide centralized time and temperature visibility across industrial facilities.
Real-Time Attendance Monitoring
Bell Schedule Management
Technical Specifications
| Item | Specification |
|---|---|
| Model | ATC-HHMMSS-T |
| Display Type | 6-Digit HH:MM:SS |
| LED Type | 7-Segment LED |
| Character Size | 9 cm × 12 cm |
| Overall Dimensions | 18 × 65 × 5 cm |
| LED Color | Red (Standard), Green, Blue, Yellow Optional |
| Viewing Angle | ≥120° |
| Viewing Distance | Up to 15 m |
| Controller | Microchip PIC 16F887 (USA) |
| RTC Chip | Dallas DS12887 |
| Backup Battery | Yes |
| Input Power | 220 VAC, 50 Hz |
| Operating Voltage | 12 VDC, 2A |
| Housing Material | Taiwan Acrylic 3 mm / Optional Aluminum |
| Installation Method | Wall Mounted |
| LED Lifetime | >50,000 Hours |
| OEM Communication | RS485, RS232, External Signals |
| Operating Temperature | 0°C to +60°C |
Primary Applications
-
Factory Production Lines
-
Manufacturing Plants
-
Quality Control Rooms
-
Andon Display Systems
-
Warehouses and Logistics Centers
-
Cold Storage Facilities
-
Clean Rooms
-
Hospitals and Medical Facilities
-
Schools and Universities
-
Banks and Commercial Buildings
-
Airports and Transportation Facilities
-
Control Rooms and Monitoring Centers
Target Customers
-
Manufacturing Companies
-
Electronics Factories
-
Food Processing Plants
-
Textile Manufacturers
-
Mechanical Workshops
-
Warehousing and Logistics Companies
-
Hospitals and Healthcare Providers
-
Educational Institutions
-
Government Organizations
-
Industrial Automation Integrators
-
SCADA and MES Contractors
-
OEM Equipment Manufacturers
OEM Support
ATPro provides comprehensive OEM and ODM services for distributors, system integrators, and industrial solution providers.
OEM options include:
-
Custom display dimensions
-
Custom LED colors
-
Custom housing materials
-
Company logo printing
-
Private label manufacturing
-
RS485 communication
-
Modbus RTU integration
-
Countdown timer functions
-
Production data display
-
Temperature display integration
-
Export documentation support
-
Bulk order discounts
Why Choose Us
-
More than 10 years of industrial electronics experience
-
High-quality Microchip and Dallas components
-
Flexible OEM and ODM services
-
Competitive factory-direct pricing
-
Professional engineering support
-
Easy integration with SCADA and MES systems
-
Fast production and delivery
-
Long-term technical support
-
Genuine warranty and spare parts availability
Contact us today for pricing, OEM requirements, project consultation, and volume order support.
