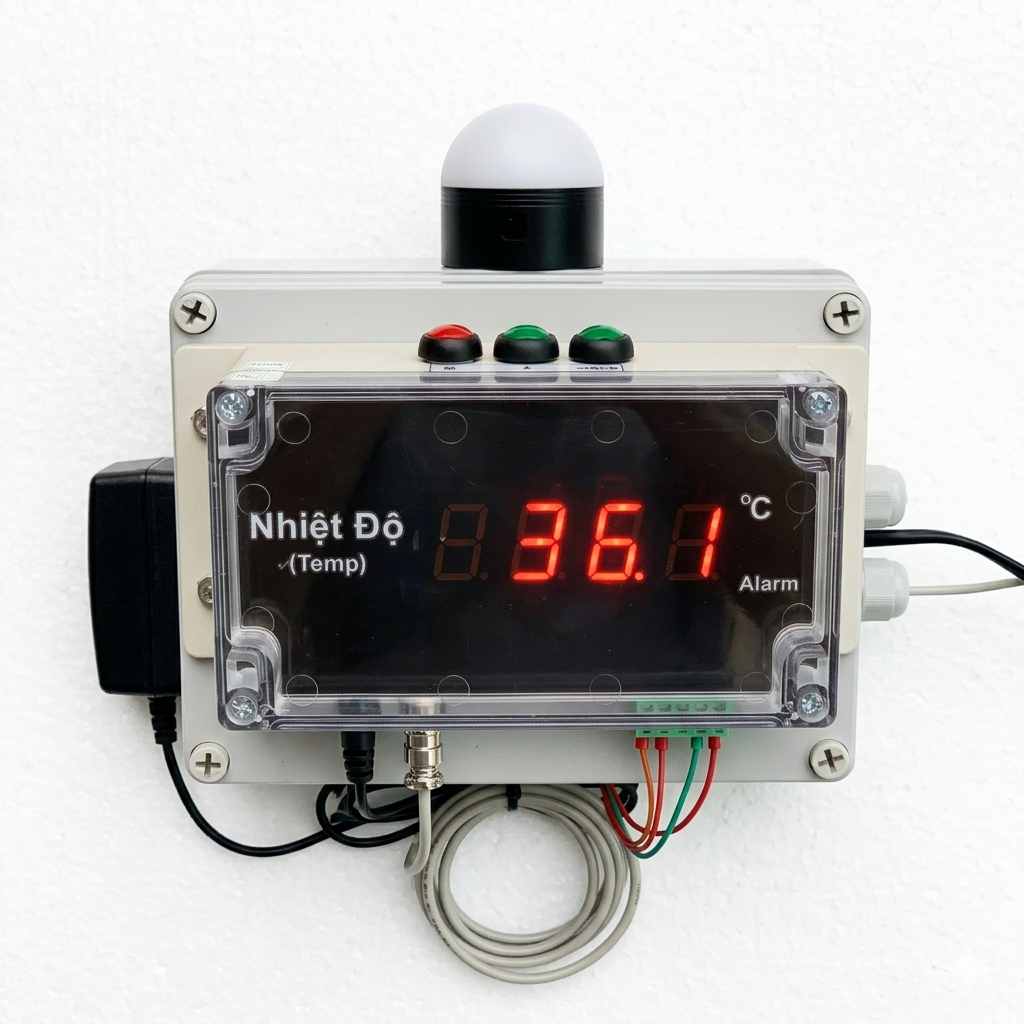

Product Overview
The AT-TMS3.1 is an industrial temperature display designed for data centers, server rooms, cold storage, pharmacies and manufacturing facilities.
It combines a bright 6-digit LED display, RS485 Modbus RTU communication, one relay output and a remote temperature sensor with a cable distance of up to 20 meters.
When connected to ATSCADA, users can monitor temperature remotely, review historical trends and receive alarm notifications.
Application in Data Centers
Show the AT-TMS3.1 installed at the end of an aisle between server racks in a modern data center.
The bright LED display allows facility teams to check real-time temperature from a distance without opening control cabinets or checking each rack manually.
The Problem
High temperature can reduce server performance, shorten equipment life and cause unexpected shutdowns.
Manual inspections only provide temperature readings at the time of inspection. They cannot continuously detect rising temperatures or immediately notify staff when a limit is exceeded.
Data centers therefore need continuous temperature monitoring with local display, remote access and automatic alarms.
The Solution – AT-TMS3.1
The AT-TMS3.1 provides continuous temperature monitoring in server rooms and other critical environments.
Its high-brightness LED display shows the current temperature clearly. The remote sensor can be installed up to 20 meters from the display, providing flexible sensor placement inside racks, cold rooms or storage areas.
The device communicates with PLC, SCADA and BMS systems through RS485 Modbus RTU.
Its built-in relay can automatically activate:
- Cooling fans
- Warning lights
- Audible alarms
- Backup cooling systems
- Refrigeration control equipment
Dual-Color Status Alert
The display uses clear color indicators to help operators identify system status quickly:
-
Green: The temperature remains within the configured range.
-
Red: The temperature exceeds the configured alarm threshold.
The bright color-changing display keeps readings clearly visible in industrial environments, similar to large-format temperature humidity displays.
Key Features and Benefits
|
Feature |
Customer Benefit |
|
High-brightness 6-digit LED display |
Easy to read from across the room |
|
0.8-inch LED digits |
Clear visibility in technical areas |
|
RS485 Modbus RTU |
Connects to PLC, SCADA and BMS |
|
One relay output |
Controls alarms, fans or cooling systems |
|
-40°C to +125°C range |
Supports cold and high-temperature applications |
|
0.1°C resolution |
Displays small temperature changes |
|
±1°C accuracy |
Reliable monitoring for critical environments |
|
Sensor distance up to 20 meters |
Flexible placement away from the display |
|
Panel or wall mounting |
Suitable for racks, walls and control panels |
|
100–240V AC power |
Supports international installations |
|
Dual-color status alert |
Quickly identifies normal and alarm conditions |
|
Free SCADA software |
Enables local monitoring from a computer |
Software Benefits
Remote Monitoring
Check real-time temperature from a phone, laptop or control-room computer.
Historical Trends
Review stored data to identify repeated overheating, cooling problems or abnormal operating patterns.
Smart Alerts
Receive notifications when temperature exceeds a configured threshold.
Available notification methods depend on the system configuration and may include:
- SMS
- Mobile notifications
- On-screen alarms
Automated Reports
Generate daily, weekly or monthly reports for maintenance, audits and management review.
API and Software Integration
Integrate temperature data with other software platforms according to project requirements.
Export Reports and Send Notifications
ATSCADA can export historical temperature data to Excel.
The system can also send email or SMS notifications when temperature exceeds a configured limit.

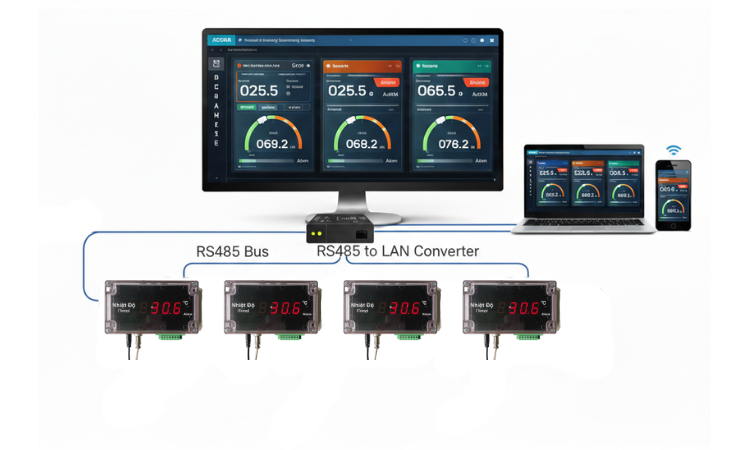

Free SCADA Application for AT-TMS3.1
The free ATSCADA application allows users to view temperature data from the AT-TMS3.1 on a computer.
Depending on the project configuration, the software can display:
- Current temperature
- Alarm status
- Historical trends
- Device communication status
- Recorded temperature data
Mobile App ATSCADA.
Web based ATSCADA
Export the report to Excel and send notifications via email and SMS.
View system data on PC.
Technical Specifications
|
Temperature measurement device product code |
AT-TMS-3.1 |
|
Brand |
ATPro |
|
Application |
LED temperature measurement display |
|
Overall dimensions of temperature measurement device |
155mm x 88mm x 65mm |
|
Adjustment |
Via computer software |
|
LED Digits |
3 high-quality 0.8-inch digits |
|
Temperature measurement device LED color |
Red, Amber, Blue, Green; Default: Red |
|
Material |
Plastic box |
|
Installation |
Temperature measurement device control cabinet |
|
Energy saving |
Low power consumption LED |
|
Power Adapter |
Uses external adapter |
Temperature measuring device specifications
|
Power supply |
100-240V AC 50 / 60HZ |
|
Working environment for temperature measurement device |
-10 °C ~ 50 °C, 0 ~ 95% RH |
|
Measurement range and accuracy |
-40 ~ 125 °C, ± 1 °C |
|
Temperature resolution |
0.1 °C |
|
Power consumption |
<5 Watt |
|
Net weight |
1.3 kg |
|
Gross weight of temperature measurement device |
1.5 kg |
|
Packaging size |
175mm x 108mm x 80mm |
|
Power jack standard |
US / UK / AU / EU |
Primary Applications
Data Centers and Server Rooms
Monitor server racks, UPS rooms, network equipment and cooling areas.

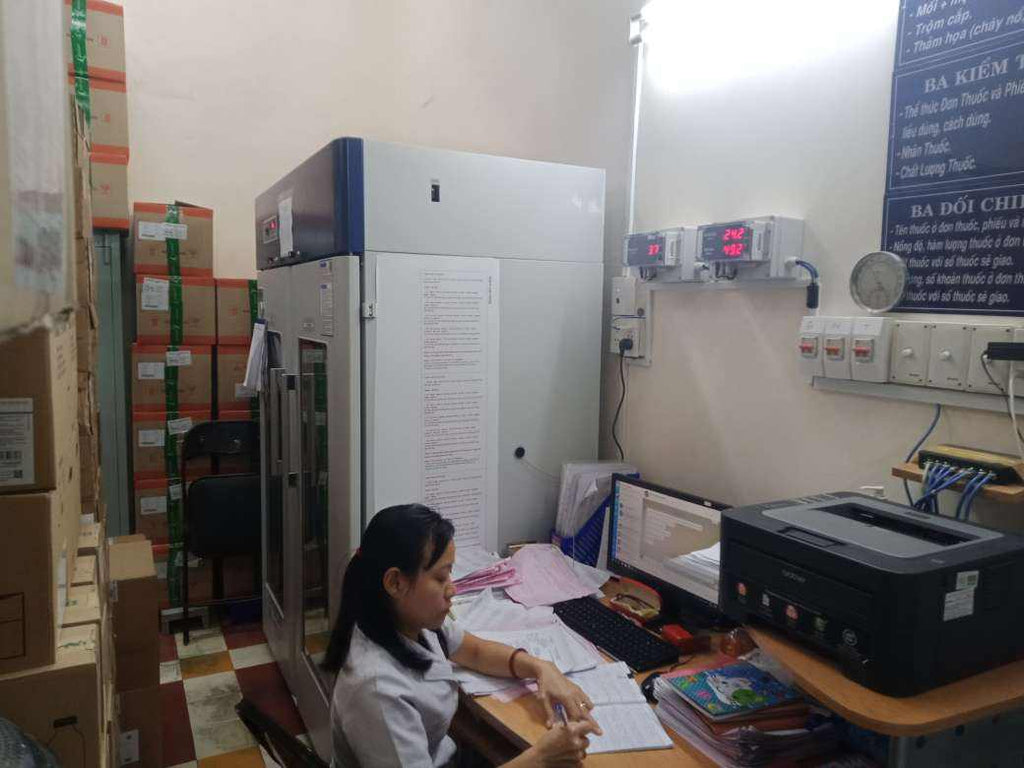

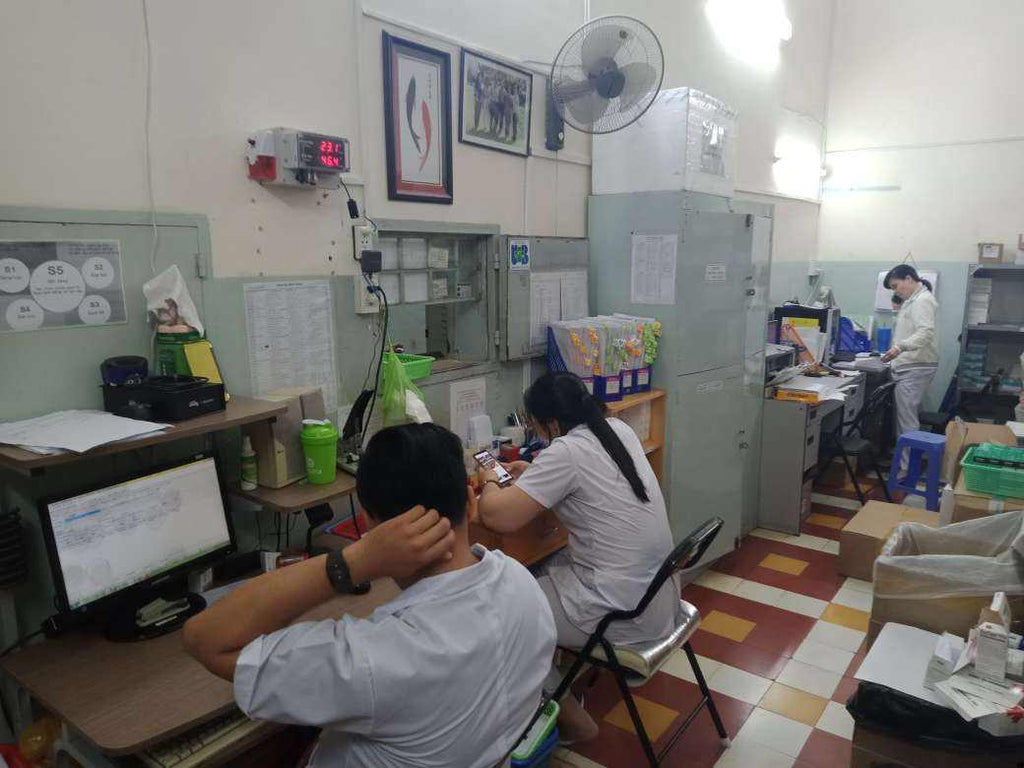

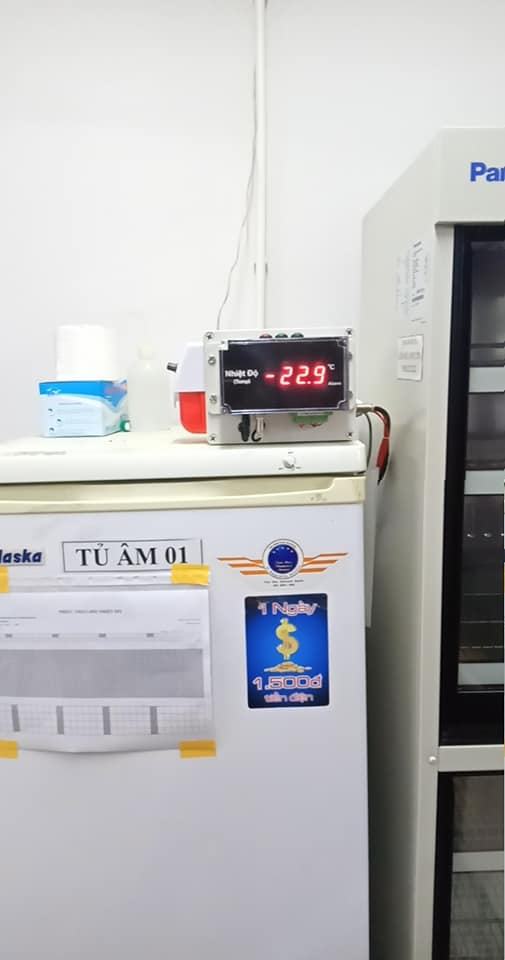

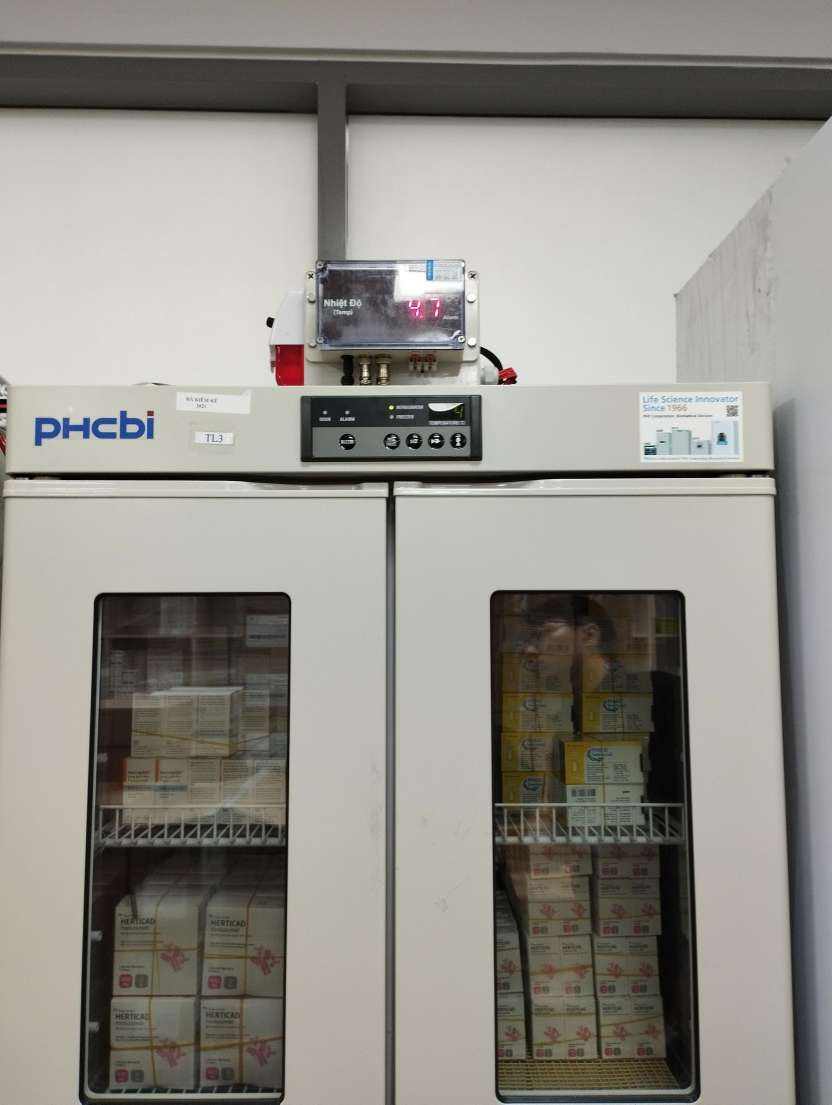

Hospital Pharmacies and Vaccine Storage
Monitor refrigerators and medicine storage areas to help maintain required temperature conditions.
Manufacturing Plants
Monitor production areas, electrical rooms and temperature-sensitive machinery.
Cold Storage and Warehouses
Track storage temperature for food, pharmaceuticals and other sensitive products.
Cleanrooms and Laboratories
Support continuous temperature monitoring in controlled environments.
Target Customers
The AT-TMS3.1 is suitable for:
- Data center operators
- Facility managers
- Hospital pharmacy managers
- Cold-chain logistics companies
- Industrial automation distributors
- SCADA system integrators
- HVAC and BMS companies
- Factory owners
- Maintenance departments
- OEM and private-label partners
We welcome long-term cooperation with international distributors and system integrators.
Benefits of Using an Industrial Temperature Monitor
Using a fixed LED temperature monitoring device provides important advantages:
- Continuous real-time monitoring
- Easy-to-read display for quick supervision
- Reduced risk of temperature-related damage
- Optional integration into automation systems via RS485 Modbus together with devices such as temperature humidity sensors
- Improved operational stability and safety
“For more information about the AT-TMS3.1 thermometer, please refer to the following”
OEM Support and Customization
We support distributors and project partners with:
- Custom product branding
- Logo printing
- Private labeling
- Customized packaging
- Product documentation
- SCADA dashboard configuration
- Modbus communication support
- Remote technical assistance
- Stable supply for repeat orders
OEM requirements depend on order quantity and customization scope.
Pricing Structure
| Quantity | Price Level | Reference Price |
| 1–10 units | Sample price | USD 116 per unit |
| 50+ units | Distributor price | USD 105 per unit |
| 300+ units | Bulk-order price | USD 93 per unit |
Prices are for reference only.
Final pricing may change according to quantity, branding, packaging, software requirements and delivery terms.
Why Choose AT-TMS3.1?
- Clear local LED temperature display
- RS485 Modbus RTU communication
- Free ATSCADA monitoring software
- Remote monitoring through ATSCADA Cloud
- Relay output for alarm or cooling control
- Remote sensor placement up to 20 meters
- Flexible panel or wall installation
- OEM and private-label support
- Technical assistance for system integration
- Suitable for international distribution projects
ATSCADA combines industrial hardware integration with SCADA software development, allowing customers to build a complete temperature monitoring solution instead of using a standalone display only.
Conclusion
The AT-TMS3.1 is a compact and reliable industrial temperature monitor designed for indoor applications. With a wide measuring range, clear red LED display, high resolution, and optional Modbus RTU RS485 communication, it is an effective solution for factories, warehouses, cold storage facilities, and other controlled environments.
If you are looking for a professional device to support real-time temperature supervision, AT-TMS3.1 is a practical choice for industrial monitoring.
